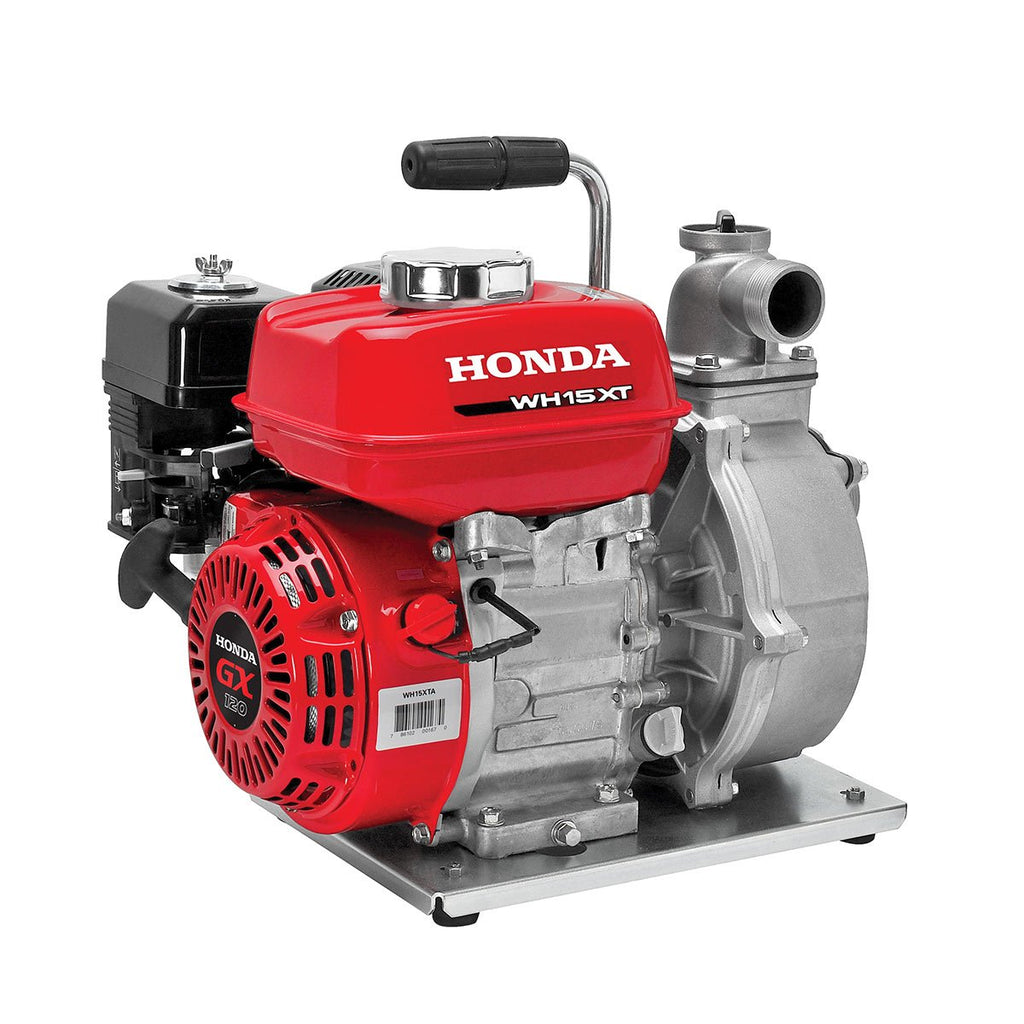

Honda WH15 High Pressure Centrifugal Pump, 1.5" WH15XT2A WH 15 XT 2A

1 1/2" high pressure water pump

• 98 gal./min. capacity
• 57 psi max.
• Cast iron volute and impeller

Features

High pressure - ideal for sprinklers or nozzles

With a maximum pressure of 57 psi, the WH15 is designed for a variety of applications requiring high pressure.

Easy starting Honda OHV commercial engine

The durable Honda GX series commercial grade engine is easy starting and provides ample power for the toughest conditions.

98 gal./min. capacity



Cast iron volute and impeller

The rigid-mount cast iron volute reduces case wear, increasing the life of the pump.

Easy carry handle

The WH15 is easy to transport wherever you need it.

Lightweight aluminum case

Specifications

EngineGX120

Displacement118cc

Bore and stroke2.4" x 1.7"

Compression Ratio8.5:1

Oil AlertN/A

Pump TypeHigh Pressure, Centrifugal, Self-priming

VoluteRigid Mounted Cast Iron

ImpellerCast Iron

Mechanical Seal (Pump case / impeller)Carbon/Ceramic

Priming time80 sec. at 16.4 ft.

Drive systemDirect

Discharge capacity98 gals./min.

Suction port diameter1.5" NPT

Discharge port diameter1.5" NPT

Total head lift131 ft.

Suction head lift26 ft.

Maximum pressure57 psi

Solids handlingN/A

Dimensions (LxWxH)16.3" x 14.2" x 16.3"

Dry weight49 lbs.

Fuel Capacity0.53 gal

Run Time @ Max Discharge1.5 hr

Strainer Part #78325-YB7-020

Residential Warranty24 months

Commercial Warranty12 months
